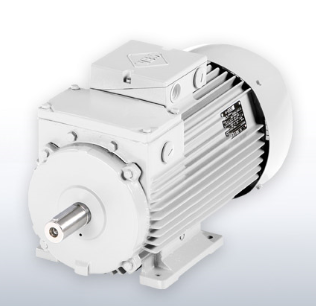

Low-voltage

Features

  • energy-efficient and non-polluting
  • design according to EN 60034 (IEC 60072)
  • mounting dimensions or allocation of output according to DIN 42673, 42677, or progressive
  • rugged, low-vibration gray cast iron design

(IE.-)KPER 56

 Zulassungsübersicht:
Baureihen und Achshöhen  EG-Baumusterprüfbescheinigung  EG-Baumusterprüfbescheinigung
(IE.-)KPER 56  PTB99ATEX3308  IBExU02ATEX1109
(IE.-)KPER 63  PTB99ATEX3309  IBExU02ATEX1110
(IE.-)KPER 71  PTB99ATEX3310  IBExU02ATEX1111
(IE.-)KPER 80  PTB99ATEX3311  IBExU02ATEX1112
(IE.-)KPER 90  PTB99ATEX3312  IBExU02ATEX1113
(IE.-)KPER 100  PTB99ATEX3313  IBExU02ATEX1114
(IE.-)KPER 112  PTB99ATEX3314  IBExU02ATEX1115
(IE.-)K1.R  112  PTB09ATEX3004  / PTB08ATEX3026X  IBExU02ATEX1109
(IE.-)K1.R  132  PTB08ATEX3037  / PTB08ATEX3001X  IBExU99ATEX1142
(IE.-)K1.R  160  PTB08ATEX3038  / PTB07ATEX3142X  IBExU99ATEX1105
(IE.-)K1.R  180  PTB08ATEX3039  / PTB07ATEX3143X  IBExU99ATEX1138
(IE.-)K1.R  200  PTB08ATEX3040  / PTB08ATEX3027X  IBExU99ATEX1143
(IE.-)K1.R  225  PTB08ATEX3041  / PTB08ATEX3028X  IBExU99ATEX1144
(IE.-)K1.R  250  PTB08ATEX3042  / PTB08ATEX3029X  IBExU99ATEX1131
(IE.-)K1.R  280  PTB08ATEX3043  / PTB08ATEX3030X  IBExU99ATEX1030
(IE.-)K1.R  315  PTB08ATEX3044  / PTB08ATEX3031X  IBExU99ATEX1137
(IE.-)K1.R 355  PTB08ATEX3032X  IBExU01ATEX1009

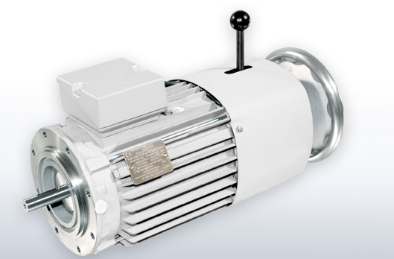

Low-voltageBrake motors

Frame sizes63 – 355
Power output range0.12 – 500 kW
Efficiency classes according to IEC 60034-30With due regard to VO(EG) 640/2009, these motors are available in the following design configurations:

  • without efficiency classification,
  • Standard Efficiency IE1,
  • High Efficiency IE2,
  • Premium Efficiency IE3
Speeds3,000; 1,500; 1,000; 750; 600; 500 r.p.m., lower speeds are available upon request
Types of protectionIP 55, optionally IP 56, IP 65 according to EN 60034-5 (IEC 60034-5)
Design typeIM B3, IM B35, IM B5, IM B14, IM B34 and derived designs according to EN 60034-7

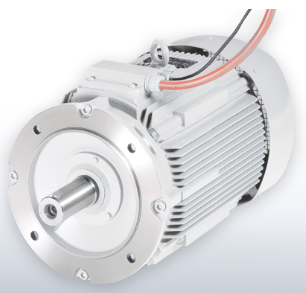

Low-voltage Fire gas motors

 Technical details

Frame sizes90 – 355
Power output range0.25 – 500 kW
Fire gas classF200, 300, 400 and 600 acc. to EN 12101-3

Low-voltage Slip-ring induction motors

 Technical details

Frame sizes132 – 315
Power output range2.2 – 315 kW
Mode of operationContinuous duty, S1 and modes S2, S3 and S4/S5
Speeds1,500; 1,000; 750; 600; 500 r.p.m.
Types of protectionIP 54, IP55, optionally IP 56, IP 65 according to EN 60034-5 (IEC 60034-5)

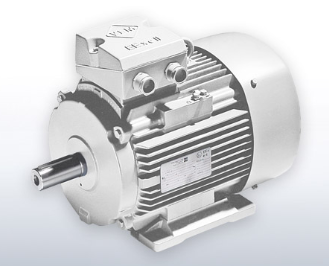

Low-voltage Roller table motors

 Technical details

Frame sizes112 – 400
Power output range0.4 – 290 kW
Speeds1,500; 1,000; 750; 600; 500 r.p.m., lower speeds are available upon request
Types of protectionIP 55, optionally IP 56, IP 65 according to EN 60034-5 (IEC 60034-5)
Design typeIM B3, IM B35, IM B5, IM B14, IM B34 and derived designs according to EN 60034-7
Types of coolingAccording to EN 60034-6 (IEC 60034-6)

  • unventilated, IC 410
